3150 Spare Parts
Kategori
Stok Kodu
EGMPQS68

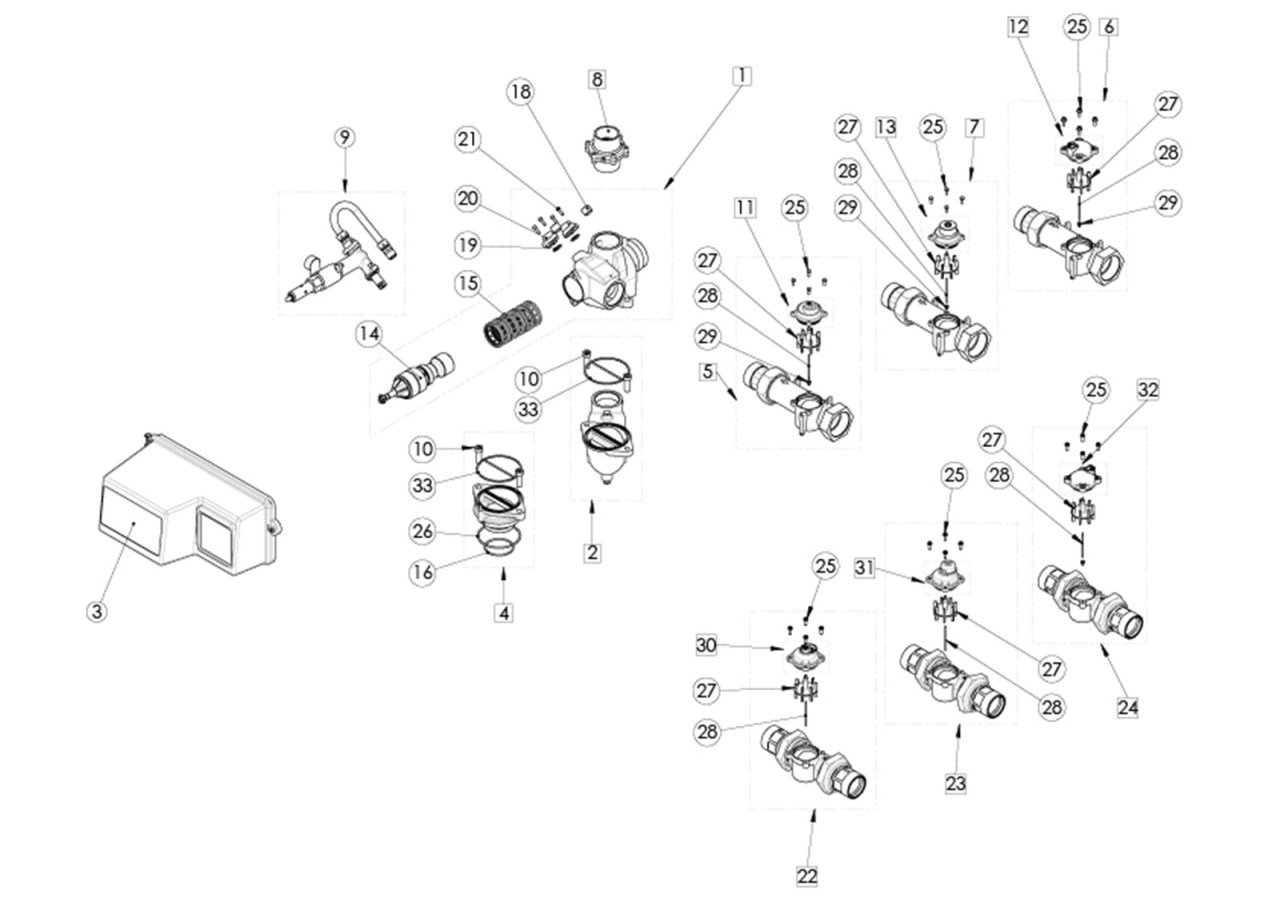

| Nº | Vendor Code | Description |
|---|---|---|
| 1 | 28516-*BU | Valve Body Assy 3150/Filter |
| 1 | Valve Body Assy 3150/Filter - DF NBP | |
| 1 | Valve Body Assy 3150/Filter - DF WBP | |
| 1 | Valve Body Assy 3150/Filter - UF | |
| 2 | 18023 | Tank Adapter Assy 3150 Side Mount |
| 3 | PH3150-002 | Power Head 3150/3900 NXT 24V/50Hz |
| 4 | 18024 | Tank Adapter Assy 3150 Top Mount |
| 5 | 24148 | Meter Assy 2" 75 m³ |
| 5 | 29094 | Meter assy SS 2" BSP Mechanical 75 m³ / Electronic |
| 6 | 18393 | Meter Assy 2" Electronic |
| 6 | 29094 | Meter assy SS 2" BSP Mechanical 75 m³ / Electronic |
| 7 | 24149 | Meter Assy 2" 375 m³ |
| 7 | 29095 | Meter assy SS 2" BSP Mechanical 375 m³ |
| 8 | 2" DLFC Assembly - 20 GPM | |
| 8 | 2" DLFC Assembly - 50 GPM | |
| 8 | 2" DLFC Assembly - 30 GPM | |
| 8 | 2" DLFC Assembly - 40 GPM | |
| 8 | 2" DLFC Assembly - 60 GPM | |
| 8 | 2" DLFC Assembly - 70 GPM | |
| 8 | 2" DLFC Assembly - 80 GPM | |
| 8 | 2" DLFC Assembly - 90 GPM | |
| 8 | 2" DLFC Assembly - 100 GPM | |
| 8 | 2" DLFC Assembly - 25 GPM | |
| 8 | 2" DLFC Assembly - 35 GPM | |
| 8 | 2" DLFC Assembly - 45 GPM | |
| 8 | 2" DLFC Assembly - 55 GPM | |
| 8 | 2" DLFC Assembly - 65 GPM | |
| 8 | 2" DLFC Assembly - 75 GPM | |
| 8 | 2" DLFC Assembly - 85 GPM | |
| 9 | 26745-9 | Brine Valve 1800 Assy 3900 Retrofit Kit Down Flow |
| 10 | 25165SP | Screw Thm 12X35 |
| 11 | 15218 | Cover Meter Assy Brass |
| 12 | 18330 | Meter Cover Assy Electronic Plastic |
| 13 | 15237 | Meter Cover Assy Brass Extended |
| 14 | 60106-00 | Piston Assy 3150/3900 Upper Down Flow |
| 14 | 60106-10 | Piston Assy 3150/3900 Upper Up Flow |
| 15 | 18022 | Seals & Spacer Kit 3150/3900 Upper |
| 16 | 25823 | O-Ring 63 mm 3150 Top Mount |
| 17 | 25165SP | Screw Thm 12X35 |
| 18 | 16387 | Valve Body Plug 1/2In Npt 3150/3900 |
| 19 | 15246-01SP | O-Ring 560 1800 injector 116 |
| 20 | 16341-02 | Injector Plug 1800 |
| 21 | 19677SP | Screw |
| 22 | 60620-10 | Meter Assy 2" 75 m³ Plastic |
| 23 | 60621-10 | Meter Assy 2" 375 m³ Plastic |
| 24 | 60625-10 | Meter Assy 2" Electronic Plastic |
| 25 | 12473SP | Screw |
| 26 | 13575-01SP | O-ring 560 CD Top of Tank |
| 27 | 15374-01 | Impeller 2" |
| 28 | BR15432 | Impeller Shaft for Impeller 15374-01 |
| 29 | 15532 | Impeller Shaft Bearing |
| 30 | BR14038 | Cover Meter Assy Plastic |
| 31 | BR15150 | Meter Cover Assy Plastic |
| 32 | 18330 | Meter Cover Assy Electronic Plastic |
| 33 | 15112 | Seal For Valve Body Adapter |
