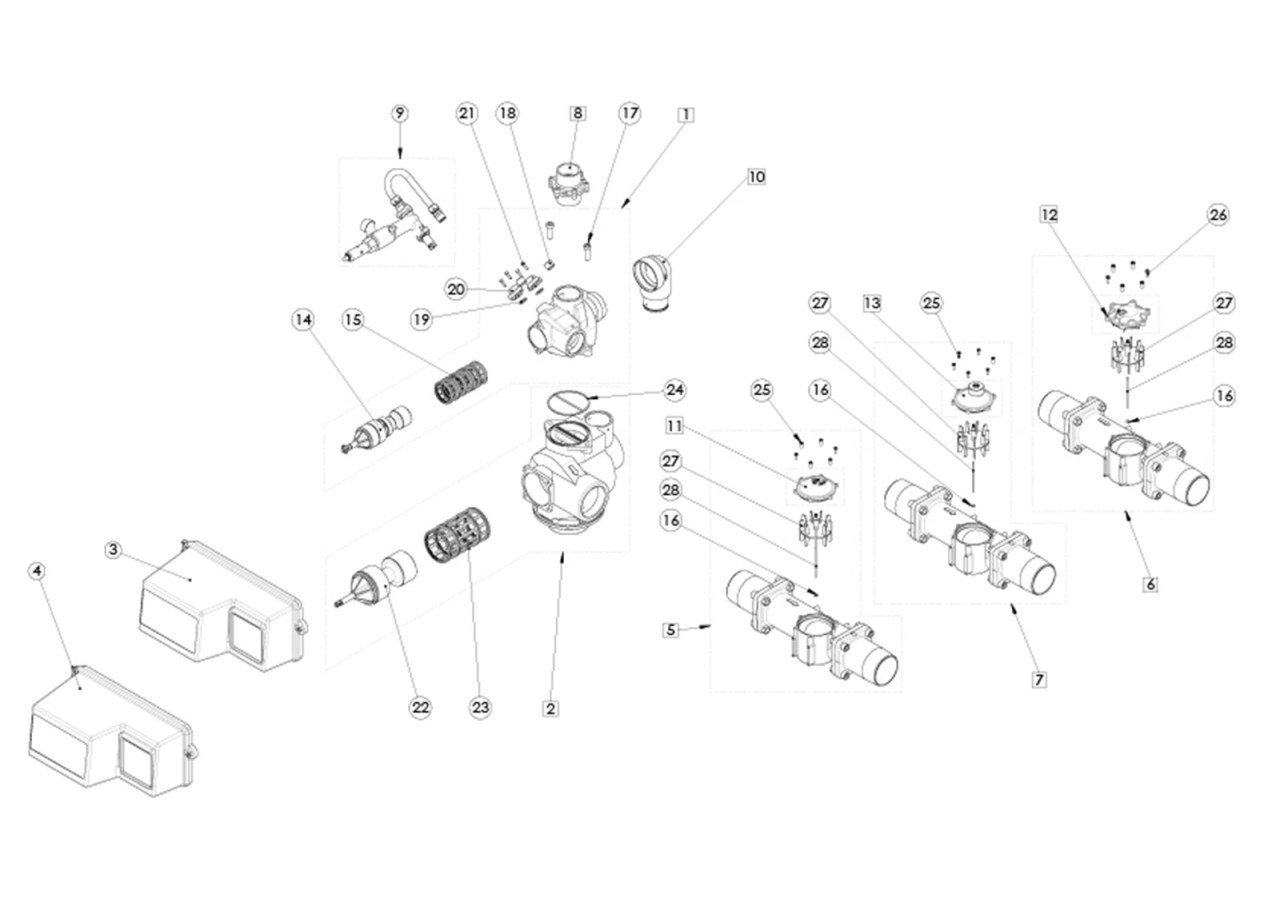

3900 Spare Parts
Kategori
Stok Kodu
AEFJK278
| Nº | Vendor Code | Description |
|---|---|---|
| 1 | BU28517-01 | Valve Body Assy 3900 DF |
| 3 | PH3150-002 | Power Head 3150/3900 NXT 24V/50Hz |
| 4 | PH3900-004 | Power Head 3900 Duplex A # 7 |
| 4 | PH3900-002 | Power Head 3900 Adaptor 24V/50Hz |
| 4 | PH3900-001 | Power Head 3900 DF 24V/50Hz Grey Cover |
| 5 | 29080 | Meter assy SS 3" BSP Mech. 240m³/Electronic |
| 5 | 29081 | Meter assy SS 3" BSP Mech. 1200m³/Electronic |
| 7 | 29081 | Meter assy SS 3" BSP Mech. 1200m³/Electronic |
| 8 | 2" DLFC Assembly - 20 GPM | |
| 8 | 2" DLFC Assembly - 50 GPM | |
| 8 | 2" DLFC Assembly - 30 GPM | |
| 8 | 2" DLFC Assembly - 40 GPM | |
| 8 | 2" DLFC Assembly - 60 GPM | |
| 8 | 2" DLFC Assembly - 70 GPM | |
| 8 | 2" DLFC Assembly - 80 GPM | |
| 8 | 2" DLFC Assembly - 90 GPM | |
| 8 | 2" DLFC Assembly - 100 GPM | |
| 8 | 2" DLFC Assembly - 25 GPM | |
| 8 | 2" DLFC Assembly - 35 GPM | |
| 8 | 2" DLFC Assembly - 45 GPM | |
| 8 | 2" DLFC Assembly - 55 GPM | |
| 8 | 2" DLFC Assembly - 65 GPM | |
| 8 | 2" DLFC Assembly - 75 GPM | |
| 8 | 2" DLFC Assembly - 85 GPM | |
| 9 | 26745-9 | Brine Valve 1800 Assy 3900 Retrofit Kit Down Flow |
| 10 | 18044 | Coupling 3900 Assy |
| 11 | 16400 | Meter Cover Assy Brass Standard (240 m³) |
| 12 | 14716-01 | Meter Cover Assy Electronic 3In (Without Meter) |
| 13 | 16401 | Meter Cover Assy Brass Extended (1200 m³) |
| 14 | 60106-00 | Piston Assy 3150/3900 Upper Down Flow |
| 14 | 60106-10 | Piston Assy 3150/3900 Upper Up Flow |
| 15 | 18022 | Seals & Spacer Kit 3150/3900 Upper |
| 16 | 16574SP | Washer |
| 17 | 25165SP | Screw Thm 12X35 |
| 18 | 16387 | Valve Body Plug 1/2In Npt 3150/3900 |
| 19 | 15246-01SP | O-Ring 560 1800 injector 116 |
| 20 | 16341-02 | Injector Plug 1800 |
| 21 | 19677SP | Screw |
| 22 | 60107-00 | Piston Assy 3900 Lower Wbp |
| 22 | 60107-10 | Piston Assy 3900 Lower Nbp |
| 23 | 18064 | Seals & Spacer Kit 3900 Lower |
| 24 | 15112 | Seal For Valve Body Adapter |
| 25 | 12473SP | Screw |
| 26 | 12112SP | Screw |
| 27 | 16575 | Impeller Assy 3In |
| 28 | 16279 | Impeller Shaft Meter (For Impeller 16575) |
