9000 Spare Parts
Kategori
Stok Kodu
DFMNWY79

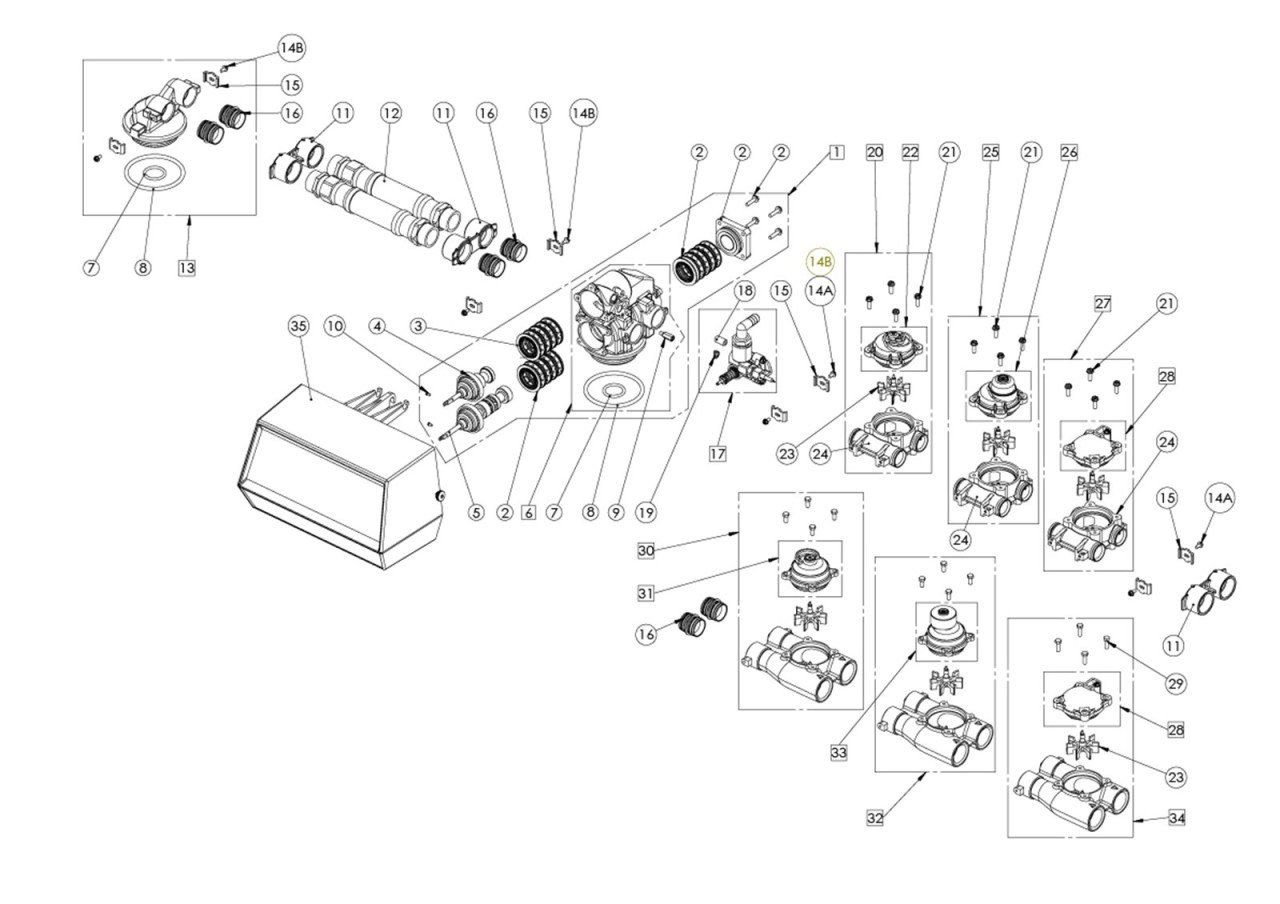

| Nº | Vendor Code | Description |
|---|---|---|
| 1 | BU28523-01 | Valve Body Assy 9000 DF |
| 2 | 25642 | Seals and spacers Kit 9000/9100 UF |
| 2 | 26013 | Seals & spacers Kit 9000 HW Upper & Lower |
| 2 | BU28664 | Seals and spacers Kit 9000/9100 Lower |
| 3 | 24115 | Seals & spacer kit |
| 3 | 24944 | Seals & spacers Kit 4600/9000 Upper HW |
| 4 | 24234 | Piston Assy 9000/9100 Upper |
| 5 | 28173 | Piston Assy 9000/9100 Lower UF |
| 5 | 24235 | Piston Assy 9000/9100 Lower Down flow |
| 6 | BU28606 | Valve Body 9000 & Seals |
| 7 | 11710-01SP | Adapt O-ring 560 CD |
| 8 | 12281-01SP | O-ring Top of Tank 560 CD |
| 10 | 11335SP | Piston Rod Screw 9000/9100/9500 |
| 11 | 13398-10 | Yoke Brass 1" Bsp Female Brass |
| 13 | 24238 | 2nd Tank Adapt Assy 9000 |
| 14B | 14202-01SP | Screw Adapt Clip |
| 14A | 13314SP | Screw Adapt Clip |
| 15 | 13255SP | Mounting Clip |
| 16 | 15078-01 | Coupling Assy 9000 |
| 18 | 13361SP | Spacer Injector |
| 19 | 13497SP | Air Disperser |
| 20 | 24107 | Meter Assy ¾" 8 m³ Plastic |
| 21 | 12473SP | Screw |
| 22 | BR14038 | Cover Meter Assy Plastic |
| 23 | 13509SP | Impeller Meter Except 2" & 3" |
| 24 | 24102 | Meter Body Assy ¾" & Ring |
| 25 | 24106 | Meter Assy ¾" 40 m³ 9000 Plastic |
| 26 | BR15150 | Meter Cover Assy Plastic |
| 27 | 26702 | Meter Assy ¾" Electronic |
| 28 | 18330 | Meter Cover Assy Electronic Plastic |
| 29 | 11737SP | Screw |
| 30 | 24229 | Meter Assy 1" 20 m³ |
| 31 | 15218 | Cover Meter Assy Brass |
| 32 | 24228 | Meter Assy 1" 100 m³ |
| 33 | 15237 | Meter Cover Assy Brass Extended |
| 34 | 27130 | Meter Assy 1" Electronic 9000 ET |
Footnote: 12. Not used / 35. See Power head 9100/9500
