9500 Spare Parts
Kategori
Stok Kodu
HMPUV458

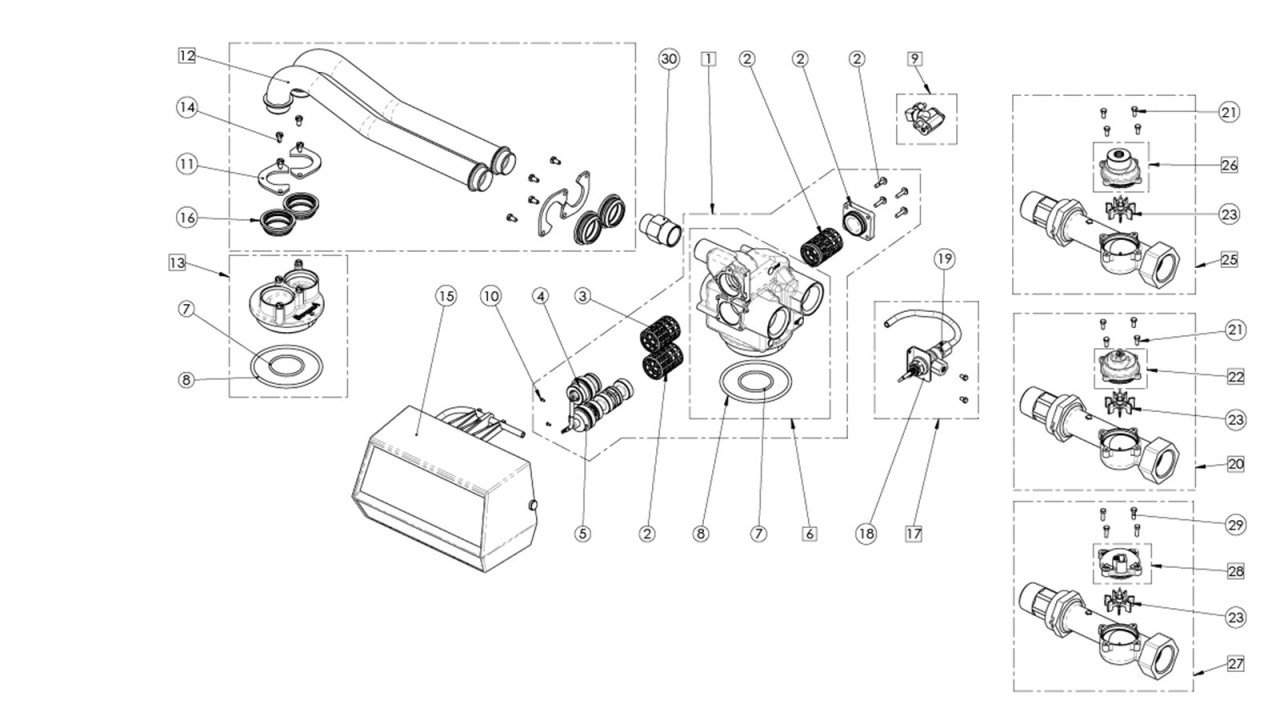

| Nº | Vendor Code | Description |
|---|---|---|
| 1 | BU28525-01 | VB Assy 9500 |
| 2 | BU28686 | Seals & Spacer Kit 9500 Lower Plastic |
| 3 | BU28685 | Seals & Spacer Kit 9500 Upper Plastic |
| 4 | 18052-01 | Piston Assy 9500 Upper Hot Water |
| 4 | 18052-US | Piston Assy 9500 Upper |
| 5 | 18053 | Piston Assy 9500 Lower |
| 5 | 18053-01 | Piston Assy 9500 Lower Hot Water |
| 6 | BU28651 | Valve Body 9500 with O-rings |
| 7 | 13577-01SP | O-ring 560 CD, distributor tube |
| 8 | 16455-01 | O-ring Top of Tank 560 CD 2850 - 9500 |
| 9 | 24199* | Injector Assy 1600 2750/2850/2910/9500 |
| 9 | Injector Assy 1600 2750/2850/2910/9500 - injector 0 | |
| 9 | Injector Assy 1600 2750/2850/2910/9500 - injector 00 | |
| 9 | Injector Assy 1600 2750/2850/2910/9500 - injector 1 | |
| 9 | Injector Assy 1600 2750/2850/2910/9500 - injector 2 | |
| 9 | Injector Assy 1600 2750/2850/2910/9500 - injector 3 | |
| 9 | Injector Assy 1600 2750/2850/2910/9500 - injector 4 | |
| 9 | 24173-* | Injector Assy 1700/1710 |
| 9 | Injector Assy 1700/1710 | |
| 9 | Injector Assy 1700/1710 - injector 3 | |
| 9 | Injector Assy 1700/1710 - injector 4 | |
| 9 | Injector Assy 1700/1710 - injector 5 | |
| 10 | 11335SP | Piston Rod Screw 9000/9100/9500 |
| 11 | 28107SP | Flange Tube 9500 |
| 12 | 28137-24 | Tube Connector 24" 9500 Assy |
| 12 | 28137-16 | Tube Connector 16" 9500 Assy |
| 12 | 28137-20 | Tube Connector 20" 9500 Assy |
| 13 | 18050 | Second Tank Adapt Assy 9500 |
| 14 | 23728SP | Screw |
| 16 | 28139 | Spacer Assy Tube 9500 |
| 17 | BU28612-1.2 | Brine valve 1710 9500 |
| 18 | 16922 | Bracket Brine valve 9500 |
| 19 | 18092* | Brine valve 1600 with tube |
| 19 | Brine valve 1600 with tube - 0,25 gpm | |
| 19 | Brine valve 1600 with tube - 0,50 gpm | |
| 19 | Brine valve 1600 with tube - 1,00 gpm | |
| 19 | BU28798 | Brine valve 1650 Assy 9500 |
| 19 | 18057* | Brine valve 1700 Assy 9500 |
| 19 | Brine valve 1700 Assy 9500 -1,20 gpm | |
| 19 | Brine valve 1700 Assy 9500 - 2,00 gpm | |
| 19 | Brine valve 1700 Assy 9500 - 4,00 gpm | |
| 19 | Brine valve 1700 Assy 9500 - 5,00 gpm | |
| 19 | Brine valve 1700 Assy 9500 - 7,00 gpm | |
| 20 | 18509 | Meter Assy 1 ½" 40 m³ 9500 |
| 20 | 29091 | Meter assy SS 1.5" BSP Mechanical 40 m³/ Electronic |
| 21 | 11737SP | Screw |
| 22 | 15218 | Cover Meter Assy Brass |
| 23 | 13509SP | Impeller Meter Except 2" & 3" |
| 24 | 27957 | Meter Body 1 ½" 9500 |
| 25 | 18508 | Meter Assy 1 ½" 200 m³ 9500 |
| 25 | 29092 | Meter assy SS 1.5" BSP Mechanical 200 m³ |
| 26 | 15237 | Meter Cover Assy Brass Extended |
| 27 | 28076 | Meter Assy 1 ½" Electronic 9500 |
| 27 | 29091 | Meter assy SS 1.5" BSP Mechanical 40 m³/ Electronic |
| 28 | 18330 | Meter Cover Assy Electronic Plastic |
| 29 | 21716SP | Screw THM 5x16 |
| 30 | 25581 | DLFC Kit 1" 2850/9500 10 to 25 gpm |
| 30 | DLFC Kit 1" 2850/9500 - 9,00 gpm | |
| 30 | DLFC Kit 1" 2850/9500 - 10,00 gpm | |
| 30 | DLFC Kit 1" 2850/9500 - 12,00 gpm | |
| 30 | DLFC Kit 1" 2850/9500 - 15,00 gpm | |
| 30 | DLFC Kit 1" 2850/9500 - 20,00 gpm | |
| 30 | DLFC Kit 1" 2850/9500 - 25,00 gpm |
Footnote: 15. See Power head 9100/9500
Footnote: 15. See Power head 9100/9500
