Power Head 5600
Kategori
Stok Kodu
DEFGMRXY

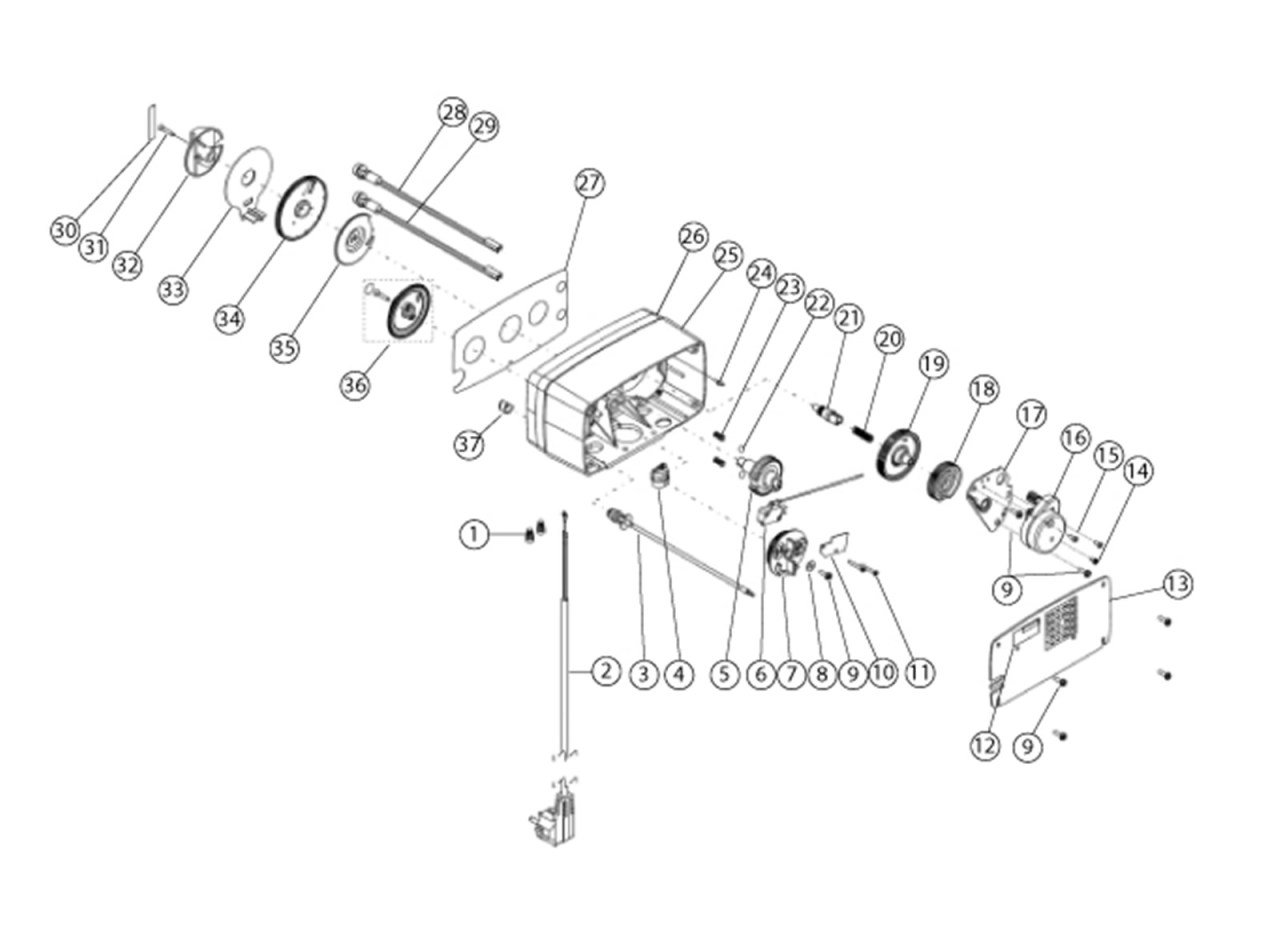

| Nº | Vendor Code | Description |
|---|---|---|
| 1 | 40422SP | Wire Nut Tan |
| 2 | 11545 | Power Cord European Black |
| 3 | 24544 | Kit Meter Cable Assy 8M³ Delayed |
| 3 | 24545 | Kit Meter Cable Assy 40 M³ Delayed |
| 4 | 13547SP | Strain Relief 230V |
| 6 | 10218SP | Microswitch assy for 5600 |
| 7 | 24121-1.00 | Brine Cam Assy 4600/5600 Down Flow |
| 7 | Brine Cam Assy 4600/5600 Down Flow | |
| 7 | Brine Cam Assy 4600/5600 Down Flow | |
| 7 | Brine Cam Assy 4600/5600 Down Flow | |
| 7 | Brine Cam Assy 4600/5600 Down Flow | |
| 8 | 12037SP | Plain Washer |
| 9 | 13296SP | Screw |
| 10 | 14087SP | Insulator |
| 11 | 18158SP | Screw |
| 13 | 13229-BLKSP | Back cover assy 5600/4600 |
| 14 | 26885 | Screw |
| 15 | 11384SP | Motor screw |
| 16 | 26776 | Motor 230V 50Hz 1/15 RPM |
| 16 | 26775 | Motor 230V 50Hz 1/30 RPM |
| 17 | 23341 | Motor mounting plate |
| 18 | 13164SP | Drive Gear |
| 19 | 13017SP | Idler Gear |
| 20 | 13312SP | Spring Idler |
| 21 | 13018SP | Idler Pinion |
| 22 | 13300SP | Ball ¼" dia |
| 23 | 14457SP | Spring Detent |
| 24 | 28202 | Motor Pin |
| 28 | 24377SP | Red lamp 230V |
| 29 | 24378SP | Green lamp 230V |
| 30 | 24750SP | Label control knob |
| 31 | 15151SP | Screw |
| 32 | 14177SP | Control knob |
| 33 | 26963SP | Valve dial position picto 5600/4600 |
| 34 | 13009-21SP | 24H Gear |
| 35 | 13802SP | Cycle Actuator Gear |
| 36 | 24120 | Program Wheel Assy 40 m³ |
| 36 | 24119 | Program Wheel Assy 8 m³ |
| 37 | 14252SP | Out board bearing cap |
Footnote: 12,26,27 and 1,2 (Timeclocked version) are not used
Footnote: 12,26 and 27 are not used
