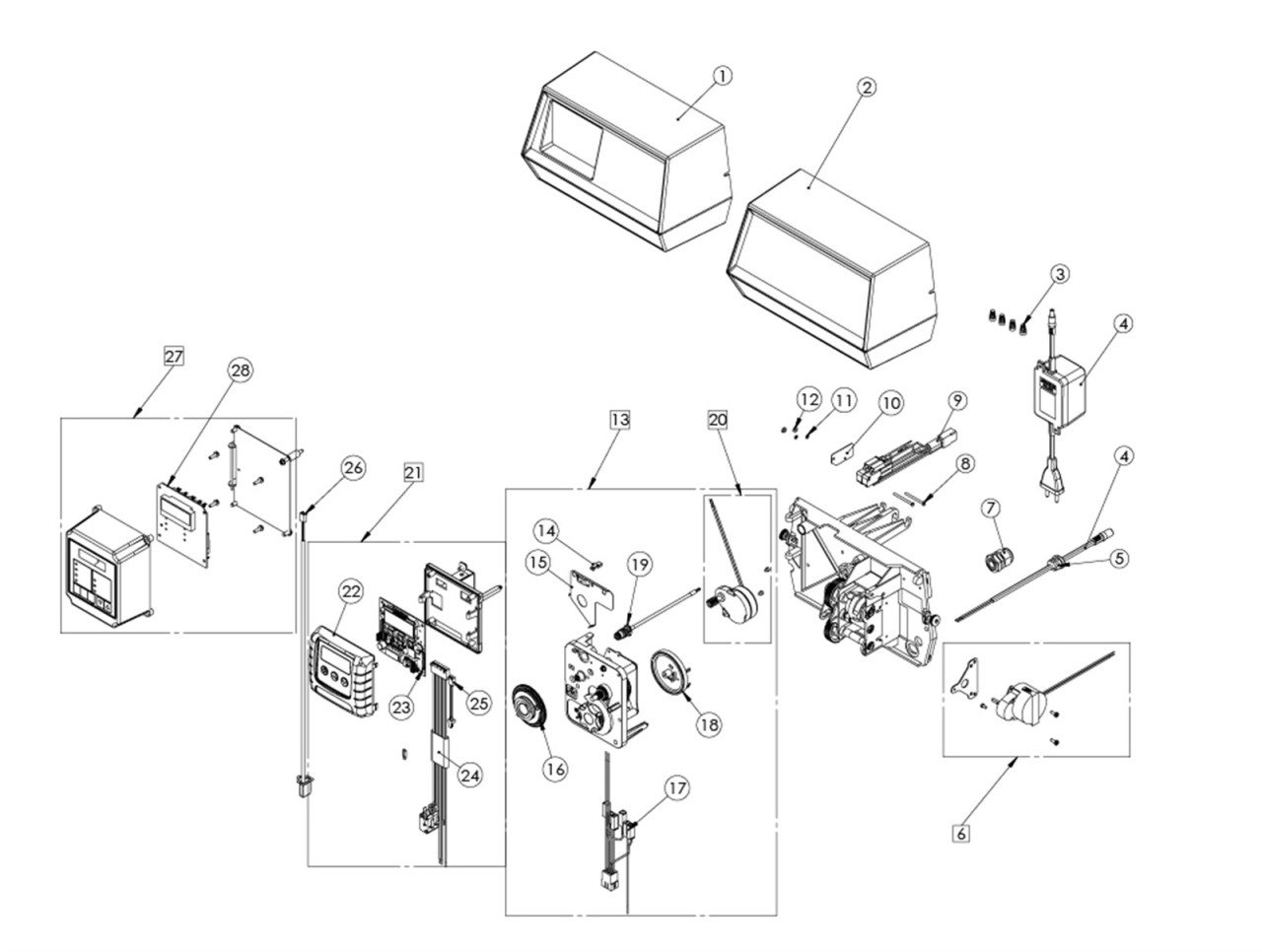

Power Head 9000-9100-9500
Kategori
Stok Kodu
ACHJLQRY
| Nº | Vendor Code | Description |
|---|---|---|
| 1 | BU26473 | Cover Assy Black Left Window 9500/9000 ET |
| 2 | 19291-020 | Cover 9000/9100/9500 Black |
| 3 | 40422SP | Wire Nut Tan |
| 4 | BU28597 | Transformer 10 VA 400 mA Residential |
| 5 | 13547SP | Strain Relief 24V |
| 6 | 26503-24 | Drive Motor Assy 24V 50/60Hz Twin |
| 7 | 17967 | Liquid Tight |
| 8 | 15172SP | Flat Head Screw 9000/9100/9500 |
| 9 | BU27746 | Harness 9000 |
| 10 | 10302SP | Insulator |
| 11 | 11663SP | Lock Washer |
| 12 | 10339SP | Nut Switch Mount |
| 13 | 24231-20 VCTIMER | Timer 9000/9100/9500 20m³ |
| 13 | 24231-200 VCTIMER | Timer 9000/9100/9500 200m³ |
| 13 | 24231-08 VCTIMER | Timer 9000/9100/9500 8m³ |
| 13 | 24231-100 VCTIMER | Timer 9000/9100/9500 100m³ |
| 13 | 24231-40 VCTIMER | Timer 9000/9100/9500 40m³ |
| 14 | 17513SP | Clip Spring |
| 15 | 15227 | Plate Clutch Actuator |
| 16 | 24914 | Program Wheel Assy 20 m³ 9000 |
| 16 | 24915 | Program Wheel Assy 40 m³ 9000 |
| 16 | 24580 | Program Wheel Assy 8 m³ 9000 |
| 16 | 24916 | Program Wheel 100 m³ 9000 |
| 17 | 15203 | Harness Timer 9000/ 9500 |
| 18 | 24201 | Program Wheel Assy 160 min |
| 19 | 25724 | Kit Meter Cable Assy 9000/9100 3/4' |
| 19 | 25725 | Kit Meter Cable Assy 9000/9100 1" |
| 20 | 26778 | Timer Motor Assy 24V/50Hz 1/30 RPM |
| 21 | BU28712-02 | Timer Assy SXT 9000/9100/9500 |
| 22 | BU28714 | Cover Front Panel & Label SXT |
| 23 | BR43346-E0 | Circuit Board SXT |
| 24 | BU28528 | Wire Harness w/ Switches |
| 25 | BU27808 | Meter Cable Adapt SE 60 mm |
| 26 | 19121-02 | Meter Cable ET 0,5 m |
| 26 | 19121-01 | Meter Cable SE/SXT 0,450 m |
| 27 | 28358 | Timer ET 9000/9100 UF |
| 27 | 27726 | Timer ET 9000/9100/9500 Down flow |
| 28 | BU28529 | Circuit Board 3200 ET |
Footnote: 15. See TIMER
